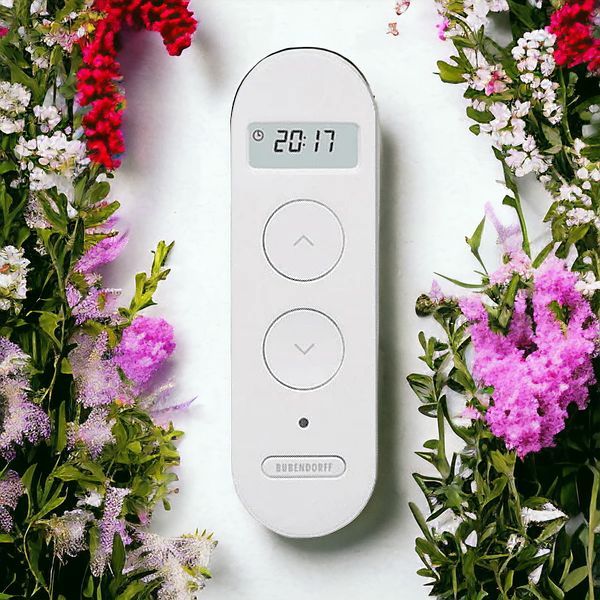

H4C radio timer 4-channel group control for Bubendorff roller shutters

Product description

The H4C radio timer (4-channel) is suitable for time control and group control of Bubendorff roller shutters built from 2011 onwards. The transmitter can be subsequently taught in and created into different groups as required and possible.

It is a 4-channel handheld transmitter that is only suitable for Bubendorff roller shutters. One of the 4 channels can be used to time control a group of roller shutters or a single roller shutter.

Group control

The following group controls are possible with the H4C:

• 1 group automated with time control
• 4 groups by manual operation

With skillful programming, you can also combine all roller shutters together, i.e. several groups, into a single “general group”. This means that all the roller shutters on the house can be opened or closed at the same time.

Example:

A total of up to 30 Bubendorff roller shutter systems can be controlled with a 4-channel timer (in up to 4 groups).

Individual control

Each roller shutter can be operated individually using its original handheld transmitter, which is supplied as standard, or using additional additional transmitters independently of the H4C.

Individual roller shutters can also be operated using the radio timer by simply creating a group and adding just one roller shutter to it.

Technical data

• Designation: H4C 4-channel radio timer (3 buttons)
• Original name: Emetteur 3BP Supplementaire (3 boutons)
• Frequency: 868.95MHz
• Operating temperature: +5°C to +40°C
• Storage temperature: -10°C to +70°C
• Range: approx. 100 m (in an obstacle-free environment)
• Power supply: 1 lithium battery type CR2032 (included)
• Dimensions (W/L/H): 45 x 107 x 15 mm
